People are currently viewing this
In stock!
Description

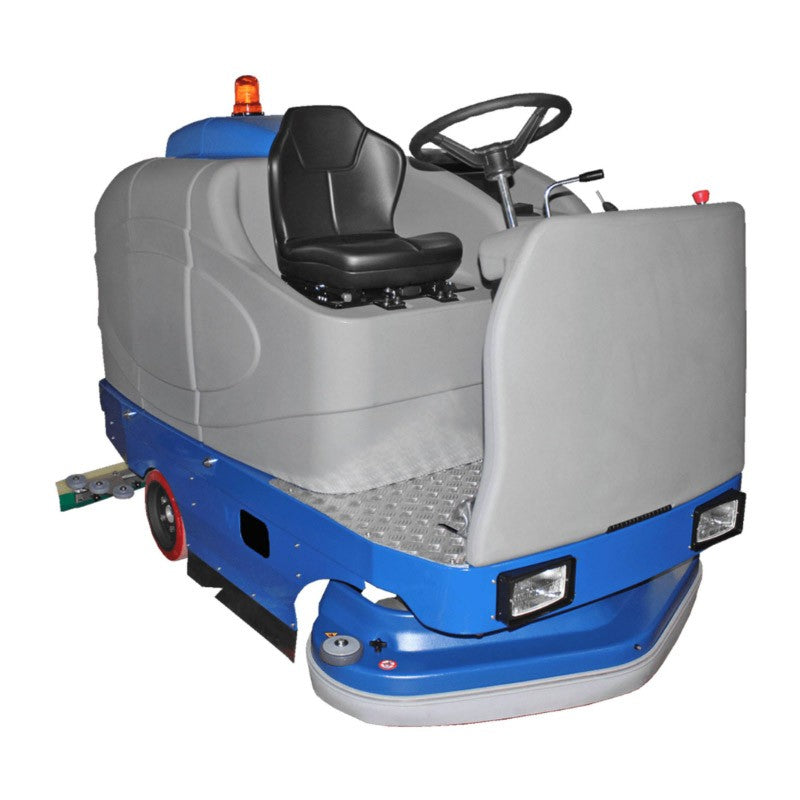

Fiorentini ICM 60 is a professional ride-on floor cleaner designed to offer excellent performance in large and complex environments. With a maximum speed of 8 km/h and a solution and recovery tank capacity of 260 L each , this machine guarantees prolonged operations without frequent interruptions for refueling or emptying. The noise level, up to 85 dB , allows you to work in environments where noise control is essential.



Specification I-60-TDB I-60-TPB I-60-TP/GB I-60-TEB
Power Supply Diesel Gas Gas / Petrol 36V Battery
Working Width 150 cm 150 cm 150 cm 150 cm
Hourly Yield 15,000 m²/h 15,000 m²/h 15,000 m²/h 18,000 m²/h
Advance Speed 0–6 km/h 0–8 km/h 0–8 km/h 0–8 km/h
Solution Tank 260 L 260 L 260 L 260 L
Recovery Tank 260 L 260 L 260 L 260 L
Waste Container 15 L 15 L 15 L 15 L
Brush Pressure 0–150 kg 0–150 kg 0–150 kg 0–150 kg
Brush Motor 3 × OR 80 C Hydraulic 3 × OR 80 C Hydraulic 3 × OR 80 C Hydraulic 3 × 750 W
Depression Aspiration 166 mbar 166 mbar 166 mbar 166 mbar

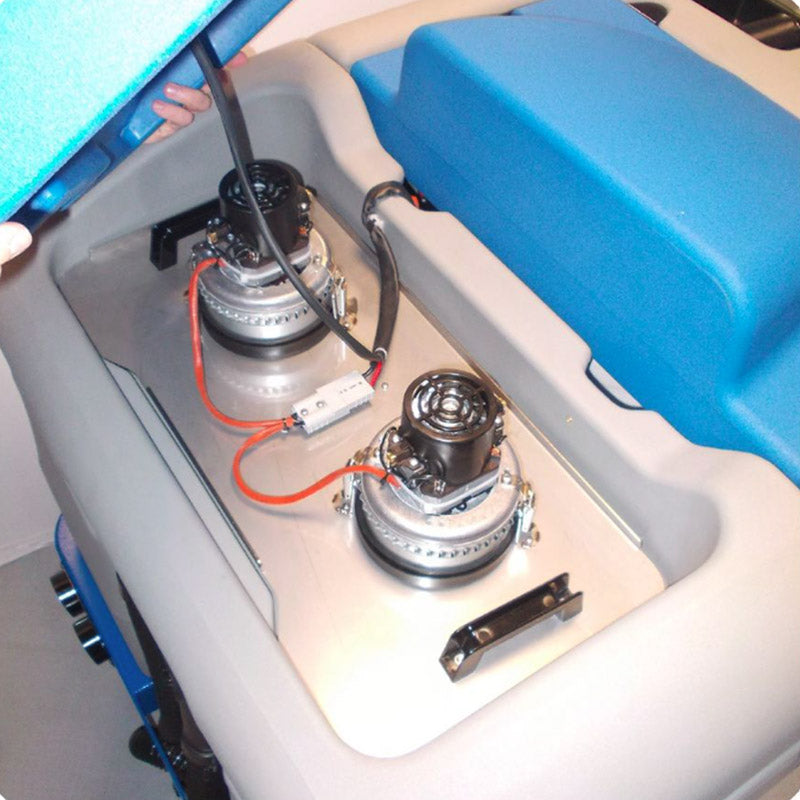

Aspiration Engine 2 × 850 W 2 × 850 W 2 × 850 W 2 × 850 W
Autonomy – – – 8 h
Max Slope 13% 13% 13% 13%
Brush Diameter 3 × Ø 460 mm 3 × Ø 460 mm 3 × Ø 460 mm 3 × Ø 460 mm
Floor Squeegee Width 1470 mm 1470 mm 1470 mm 1470 mm
Dimensions (L × W × H) 210 × 130 × 140 cm 210 × 130 × 140 cm 210 × 130 × 140 cm 210 × 130 × 140 cm
Battery Weight – – – 650 kg
Machine Weight (with batteries) 850 kg 850 kg 850 kg 500 kg
